JIANGSU WANSHIDA HYDRAULIC MACHINERY CO.، LTD
| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | WANSHIDA |
| إصدار الشهادات: | CE and ISO9001 |
| رقم الموديل: | س43-630 |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | التعبئة الصالحة للإبحار |
| وقت التسليم: | 30 يوما |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 10 مجموعات / شهر |
| اسم: | القص المعدني | نموذج: | س43-630 |
|---|---|---|---|
| أكبر قوة القص (طن): | 630kn | السكتة الدماغية من قطع الاسطوانة: | 210 ملم |
| التردد في الدقيقة (مرات): | 8 ~ 12 | طول سكين القص: | 600 ملم |
| حجم الخردة: | 30×40Φ35 | أكبر فتحة للشفرة: | 280 ملم |

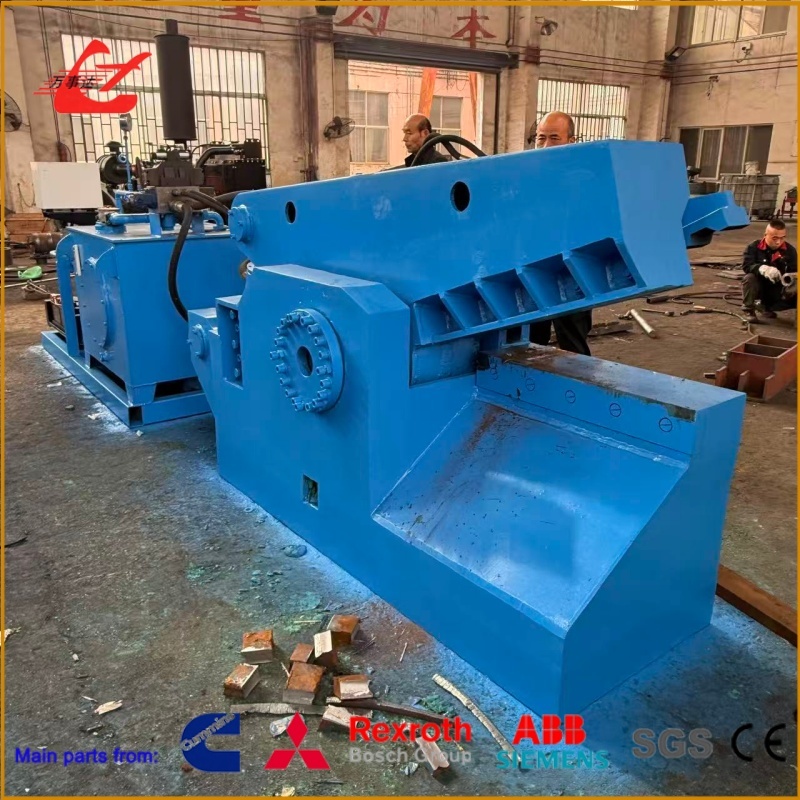

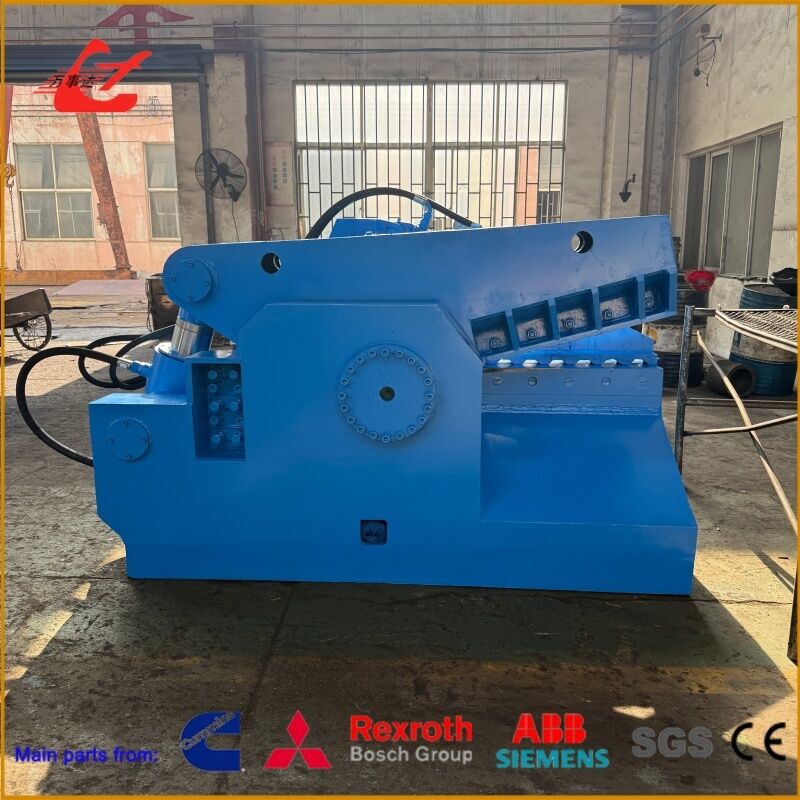

630KN Nominal Force Metal Shear,
Industrial Scrap Handling Solution with Hydraulic System and PLC Control
In modern industrial scrap metal processing, stability and efficiency are crucial. The Q43-630 Metal Shear is designed for cutting industrial scrap, including steel, aluminum, and other metals. With a nominal force of 630KN and a maximum blade opening of 280mm, it can easily shear large-size scrap, ensuring continuous and safe production.
The Q43-630 Metal Shear is suitable for:
Industrial scrap shearing
Steel, aluminum, copper, and other metal processing
Scrap recycling plants
Machinery dismantling factories
| Parameter | Specification |
|---|---|
| Largest Shear Force | 630KN |
| Stroke of Cut Cylinder | 210mm |
| Frequency per Minute | 8-12 times |
| Shear Knife Length | 600mm |
| Scrap Size | 30×40 Φ35 mm |
| Largest Blade Opening | 280mm |
| Hydraulic System Pressure | 21MPa |
| Electromotor | Y132M-4, 7.5kW, 1440rpm |
| Hydraulic Pump | 25YCY14-1B, 25ml/r, 31.5MPa |
Stable and Efficient: Hydraulic drive ensures smooth cutting with minimal vibration.
Wide Application: Suitable for various metal scrap types, adaptable to different working conditions.
Energy Saving: 7.5kW motor design reduces operating costs over long-term use.
Safe Operation: Manual or PLC operation ensures operator safety.
Easy Maintenance: Hydraulic system is easy to maintain, key components replaceable.
Q: What is the maximum cutting thickness?
A: Can be adjusted according to knife length and shear force; typical scrap is 30×40 Φ35 mm.
Q: What operation methods are available?
A: Manual feeding or PLC semi-automatic operation for different production needs.
Q: Where is this machine suitable?
A: Scrap recycling plants, dismantling factories, industrial scrap processing centers.
Warranty: 1-year warranty
Long-Term Support: Lifetime maintenance and spare parts supply
Service Commitment: Engineers available for technical guidance anytime to ensure smooth production
