JIANGSU WANSHIDA HYDRAULIC MACHINERY CO.، LTD
| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | WANSHIDA |
| إصدار الشهادات: | CE and ISO9001 |
| رقم الموديل: | Y83Q-4000C |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | التعبئة الصالحة للإبحار |
| وقت التسليم: | 40 يوما |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 10 مجموعات / شهر |
| اسم: | مقص المعدنية | نموذج: | Y83Q-4000C |
|---|---|---|---|
| قوة القطع (كيلو نيوتن): | 4000 | اسطوانة اليسار (KN): | 3200 |
| الأسطوانة اليمنى (KN): | 3200 | أبعاد غرفة الضغط (L*W*H) (مم): | 5000*1350*680 |
| طول بالة (مم): | 300-700 | سرعة القطع (مرات / دقيقة): | 2-3 |
| الطاقة (كيلوواط): | 74 |

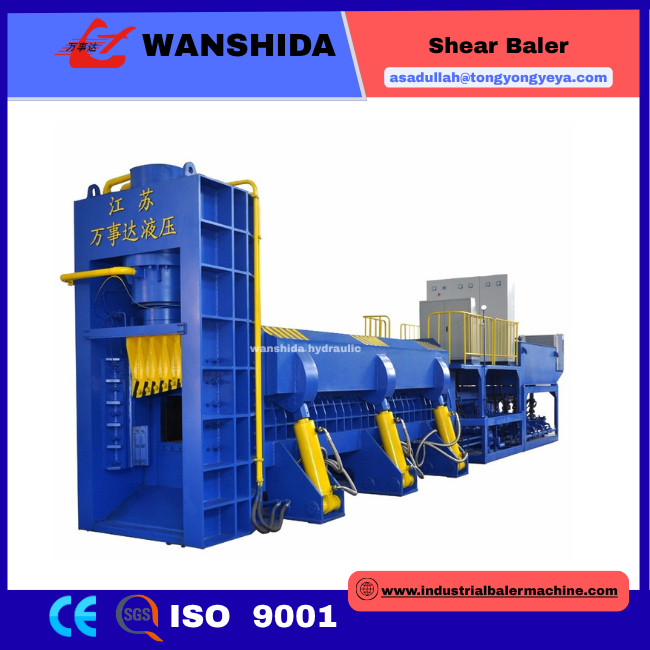

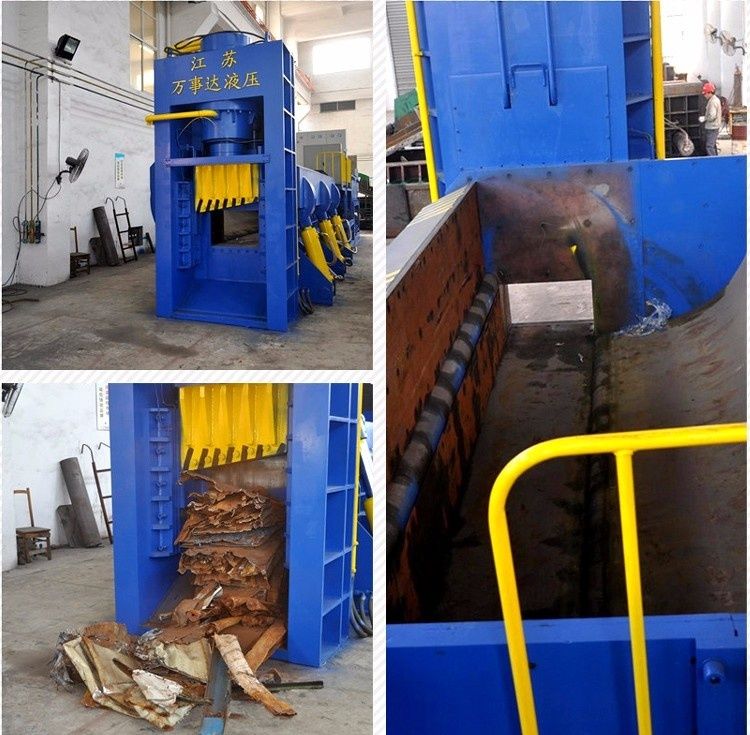

Metal Baler Shear for Scrap Yard with 4000 kN Cutting Force
and Automatic PLC Operation System
The hydraulic metal baler shear is designed for processing heavy scrap materials by combining compression and cutting functions in one machine. This scrap metal baler shear is widely used in steel mills, recycling yards, and metal processing plants where high efficiency and space-saving solutions are required.
With a powerful cutting force of 4000 kN (400 ton), the machine can handle bulky and irregular scrap such as steel plates, profiles, and structural materials. The compress chamber size of 5000 × 1350 × 680 mm allows large-volume feeding, improving productivity and reducing manual handling.
This metal baler shear machine is an ideal solution for customers looking to increase processing efficiency while reducing transportation and labor costs.
| Item | Specification |
|---|---|
| Model | Y83Q-4000C |
| Cutting Force | 4000 kN |
| Side Cylinder Force | 3200 kN ×2 |
| Chamber Size | 5000 × 1350 × 680 mm |
| Bale Size | 460 × 460 mm |
| Bale Length | 300–700 mm |
| Cutting Speed | 2–3 times/min |
| Power | 74 kW |
| Operation | PLC Automatic |
Q1: What materials can this baler shear process?
A: It is suitable for steel scrap, metal profiles, plates, and heavy mixed scrap.
Q2: What is the main advantage compared to a normal baler?
A: It combines cutting and baling, reducing processing steps and improving efficiency.
Q3: What is the typical output size?
A: Bale size is 460×460 mm with adjustable length.
Q4: Can it be customized?
A: Yes, chamber size, power, and control system can be customized.
