تحويل الخردة إلى قيمة، باستخدام القوة التي تستطيعهايثق
| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | WANSHIDA |
| إصدار الشهادات: | CE and ISO9001 |
| رقم الموديل: | Y83-200 |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | التعبئة الصالحة للإبحار |
| وقت التسليم: | 40 يوما |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 10 مجموعات / شهر |
| اسم: | تحويل المكبس المعدني | نموذج: | Y83-200 |
|---|---|---|---|
| القوة الاسمية: | 2000 كيلو نيوتن | طول الدورة: | التطبيق 80 ثانية |
| حجم بالة: | (～550)×400×400 مم (الطول×العرض×الارتفاع) | اضغط على حجم الصندوق: | 1600 × 1200 × 800 مم (الطول × العرض × الارتفاع) |
| ضغط النظام الهيدروليكي: | 25mpa | القوة الاسمية: | 18.5 كيلو واط |

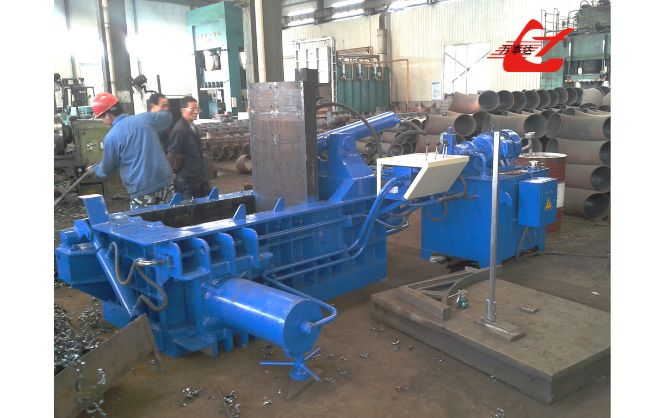

200 Ton Hydraulic Metal Baler with 400×400mm Bale Size,
18.5kW Power for Scrap Metal Recycling
The 200 ton hydraulic metal baler is designed for efficient compression of various scrap metals, including steel, aluminum, copper, and industrial waste. With a 400×400mm bale size, 2000kN pressing force, and dual 18.5kW motors, this machine delivers high productivity and stable performance.
This scrap metal baler machine is widely used in recycling centers, metal processing plants, and waste management facilities. It helps improve storage efficiency, reduce transportation costs, and increase recycling value.
Scrap metals occupy large storage space
Low density leads to high transportation costs
Manual handling is inefficient and unsafe
Irregular shapes reduce recycling efficiency
This hydraulic metal baler compresses scrap into compact and dense bales, reducing volume and improving handling efficiency, which significantly lowers logistics costs.
| Item | Specification |
|---|---|
| Nominal Force | 2000 kN (200 Ton) |
| Press Box Size | 1600 × 1200 × 800 mm |
| Bale Size | 400 × 400 mm |
| Cycle Time | Approx. 80 seconds |
| Motor Power | 18.5 kW × 2 |
| Hydraulic Pressure | 25 MPa |
| Operation Mode | Manual / Automatic |
Scrap metal recycling centers
Steel plants
Aluminum processing plants
Waste management facilities
The hydraulic system drives multiple cylinders to compress scrap metal inside the chamber. The material is compacted into dense bales and then automatically discharged.
Consider the required pressing force
Check bale size requirements
Confirm material type
Evaluate power consumption
Q1: What materials can this machine process?
A: Steel, aluminum, copper, and other scrap metals
Q2: Is the machine automatic?
A: Yes, both manual and automatic modes are available
Q3: What is the cycle time?
A: Around 80 seconds per cycle
Q4: Do you provide installation support?
A: Yes, remote and on-site support are available
12-month warranty
Spare parts supply
Technical support within 24 hours
Installation and training available
