تحويل الخردة إلى قيمة، باستخدام القوة التي تستطيعهايثق
| مكان المنشأ: | الصين |
|---|---|
| اسم العلامة التجارية: | WANSHIDA |
| إصدار الشهادات: | CE and ISO9001 |
| رقم الموديل: | Q43L-10000 |
| الحد الأدنى لكمية: | 1 مجموعة |
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | التعبئة الصالحة للإبحار |
| وقت التسليم: | 45 يوما |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 10 مجموعات / شهر |
| نموذج: | Q43L-10000 | غرفة التغذية: | 8000 × 1800 × 900 مم |
|---|---|---|---|
| الحد الأقصى من الفولاذ المستدير: | Φ 150 ملم | الحد الأقصى للصلب المربع: | 145 × 145 ملم |
| سعة اللوحة: | 80 × 1700 مم (Q235) | عرض شفرة: | 1800 ملم |
| الحد الأدنى للفتح: | 700 ملم | سرعة القطع: | 2-3 قطع/دقيقة |
| إبراز: | heavy duty scrap metal gantry shear,industrial baler machine with 8000mm feeding,270kW power metal gantry shear |
||

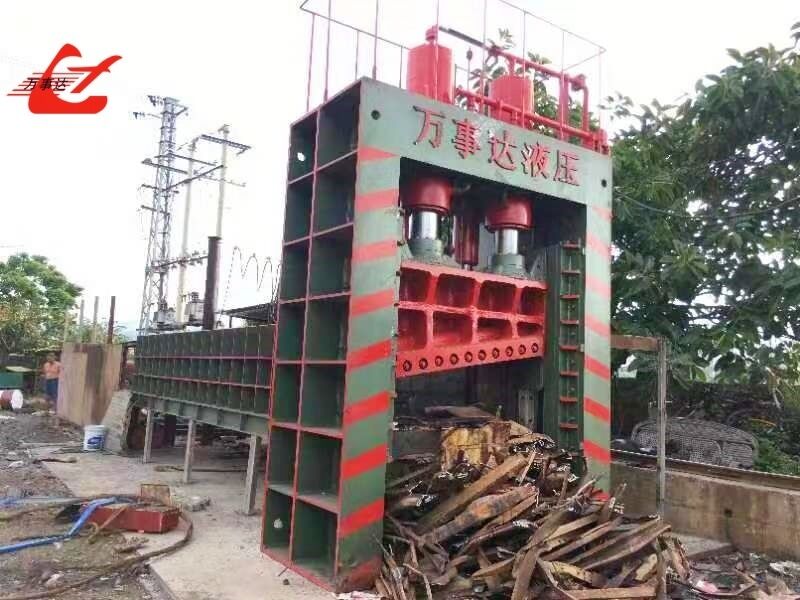

The Q43L-10000 Hydraulic Gantry Shear is designed for heavy-duty scrap metal processing, steel plate cutting, and structural steel recycling applications. With a powerful 1000-ton cutting force and a large feeding chamber, the machine is suitable for high-capacity scrap yards, steel mills, and automobile dismantling facilities.
It helps operators reduce transportation costs, improve furnace charging efficiency, and increase the value of recycled scrap materials.
Large recycling facilities often face:
Modern recycling operations require automated, reliable, and high-capacity processing equipment.
The Q43L-10000 provides a professional solution through its 1000-ton cutting system, large feeding box, reinforced frame structure, and hydraulic power unit. The machine enables continuous operation while reducing labor requirements and improving processing efficiency.
| Item | Specification |
|---|---|
| Model | Q43L-10000 |
| Cutting Force | 10000kN (1000 Ton) |
| Feeding Chamber | 8000×1800×900mm |
| Maximum Round Steel | Φ150mm |
| Maximum Square Steel | 145×145mm |
| Plate Capacity | 80×1700mm (Q235) |
| Blade Width | 1800mm |
| Minimum Opening | 700mm |
| Cutting Speed | 2–3 Cuts/Min |
| Cutting Angle | 9° |
| Working Pressure | 28MPa |
| Main Motor Power | 270kW |
| Power Supply | 380V / 3 Phase / 50Hz |
| Hydraulic Pumps | 6 Units |
| Cooling System | Water Cooling |
| Machine Weight | Approx. 140 Tons |
Suitable for:
Materials:
Materials are loaded into the feeding chamber and compressed by the hold-down cylinders. Side compression cylinders move the material into the cutting zone. The main cutting cylinder drives the blade to shear the scrap into furnace-ready sizes.
The hydraulic system ensures stable and continuous operation.
Consider the following factors:
The Q43L-10000 is recommended for large-scale recycling facilities requiring continuous high-capacity operation.
Scrap steel, steel plates, structural steel, and industrial metal waste.
Yes, PLC control systems are available.
Yes, foundation requirements depend on site conditions and machine weight.
Blade life varies by material type and operating conditions.
Yes, customization is available based on capacity, material, and site requirements.
